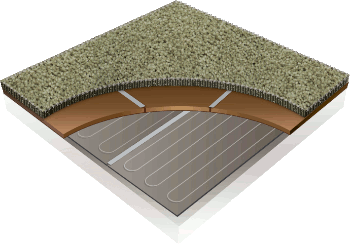

ThermoFloor is a 4-in-1 (heating, insulating, noise reducing, moisture abating) radiant floor heating underlayment specifically designed for laminate, glue-down and floating hardwood and engineered wood floors. Unlike most other systems, this laminate radiant floor heating system installs without having to be imbedded in cement! It operates on standard household voltage and produces energy-efficient heat at a maximum 10 Watts per sq. ft. ThermoFloor incorporates ThermoSoft's patented FiberThermics® heating elements instead of conventional metal wires. FiberThermics technology embodies exclusive safety and durability properties that uniquely qualify ThermoFloor for direct contact with combustible flooring materials like laminate and wood. ThermoFloor also incorporates a patented, upgraded underlayment pad that provides subfloor insulation, moisture abatement and noise reduction.
Please read & follow the detailed instructions provided with your radiant floor warming order. The overview below does not substitute
the installation manual.
|
![]() |
1. Roll out your radiant floor warming pads and arrange to fit your heated area. |
![]() |
2. Fill in non-heated areas with Insulayment® or other underlayment pad. |
![]() |
3. Install floor temperature sensor and run lead wires from the end of each pad to the electric box. |
![]() |
4. Install thermostat and make electrical connections. |
![]() |
5. |
![]() |
6. Install floor covering following floor manufacturer’s instructions. |
![]() |
Please read & follow the detailed instructions provided with your radiant floor warming order. This overview does not substitute the installation manual.
If faxing or emailing drawings to ThermoSoft for assistance:
Fax to 847-279-8845 (attn: Customer Service) or email to [email protected]
