Electric Radiant Floor Heating
Radiant Floor Heating Accessories

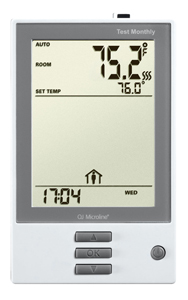

(120V Or 240V Programmable W/air & Floor Limit)
Be sure to match thermostat voltage to mat voltage.
Click here to download instructions for this device.
- Programmable thermostat
- Universal voltage (UDG-4999): Suitable for 120V or 240V applications
- 15A Output Relay.
- Max. load 120V = 1,800 Watts; 240V = 3,600 Watts
- 4-event clock for automatic comfort and setback temperature - to maximize energy savings
- Built-in 5mA GFCI with test light*
- Dual Centigrade or Fahrenheit scale
- Manual mode bypass to allow in-floor heating temperature override until manual mode is cancelled
- Adaptive function ensures temperature is obtained at the required time
- Internal memory circuit saves program and time during power outages (Time will need to be reset after 2 hours)
- Minimum temperature functions for comfort
- Maximum temperature function to protect wood floors
- Energy consumption monitoring allows to check overall energy consumption for the past 2/30/365 days
- 3 year manufacturers warranty
- Dimension: 4.8x3.0x1.0 inches (123x75x25mm)
- Made in Denmark
- Temperature range: +41/+104°F (+5/+40°C).
- Accuracy: ±0.7°F/0.4°C
- 7 days, 4 settings/day; Override for days 6 and 7 to allow 2 settings
- Pre-programmed to suggested settings - or reset to your personal settings
- F° or C° scale.
- Fits single-gang (2" box) box but a double-gang (4" box) is recommended for more room to work with multiple mats.
- Backside connection box dimensions: 1.682"W x 2.686"H x 1.2"D
- LINE wires: connect to 2 middle screws marked L1, L2.
- LOAD (mat) wires connect to 2 screws marked LOAD 1800W/3600W MAX 15A.
- Sensor wires: loosen bottom screw, lift off cover, insert sensor through oval hole in back, connect to C and D terminals inside the thermostat marked IN/SEN.
Floor sensor included with each thermostat!
- 10ft (3m) cable
- Glass coated for protection against humidity
- Proven quality
- UL recognized
